Description

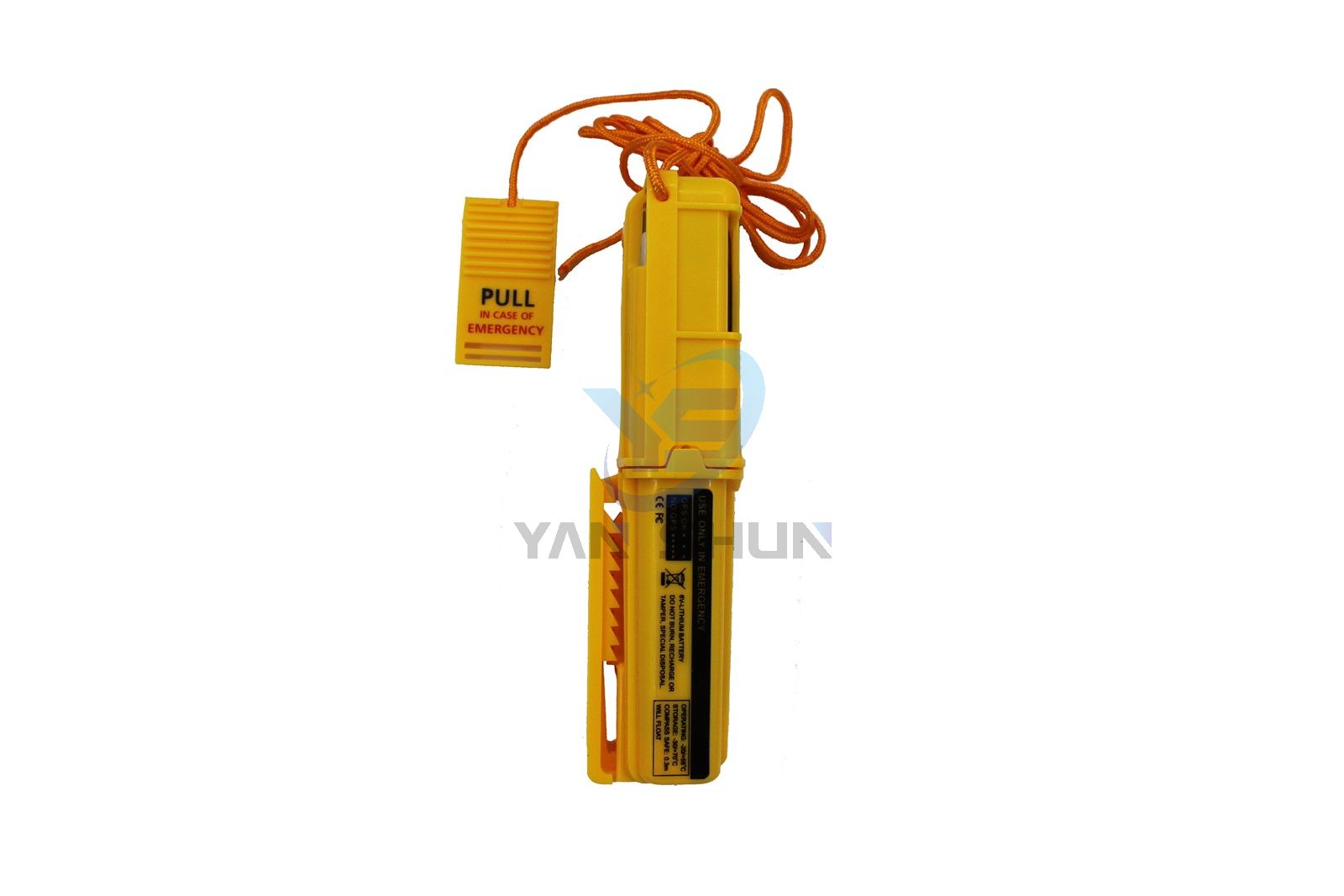

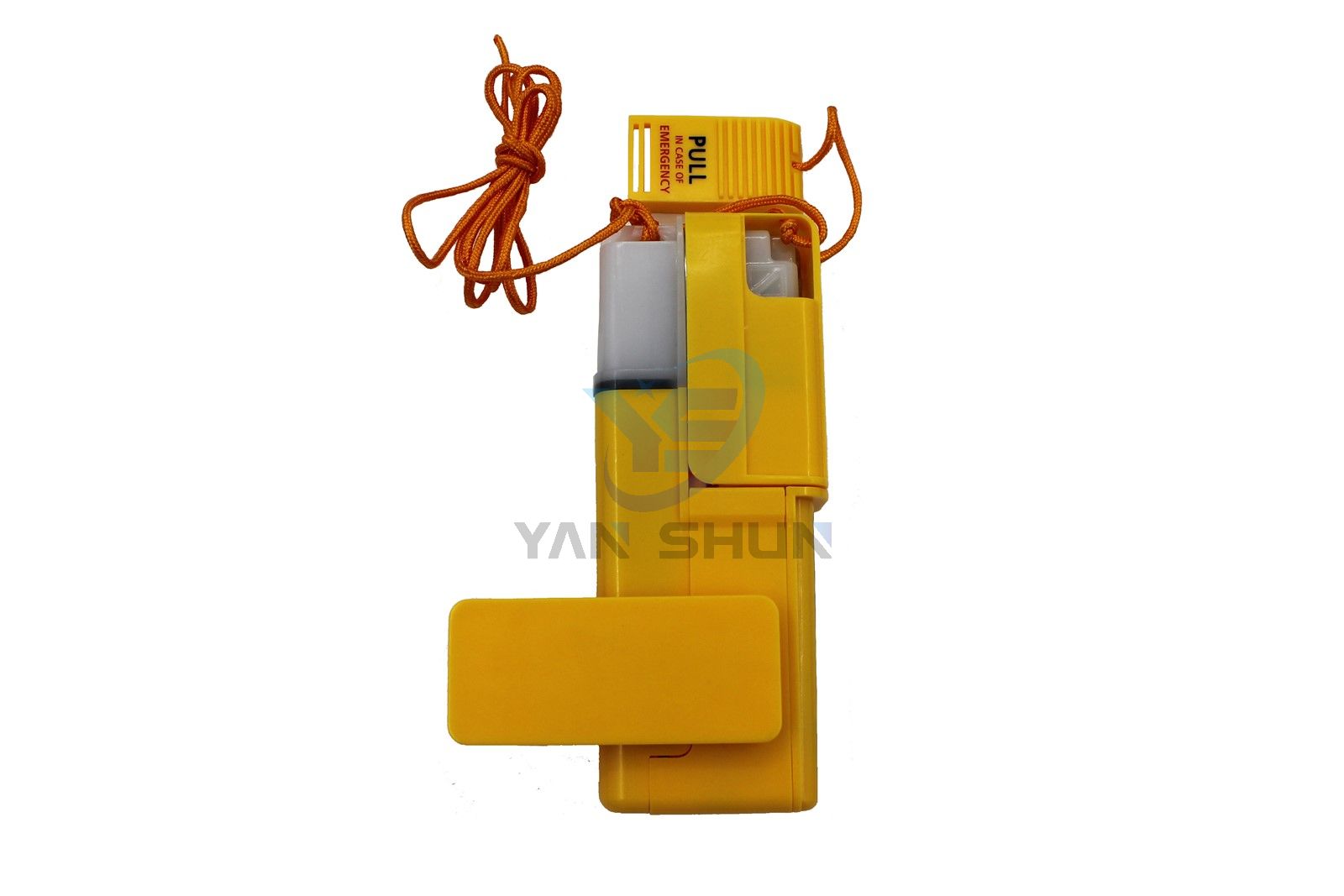

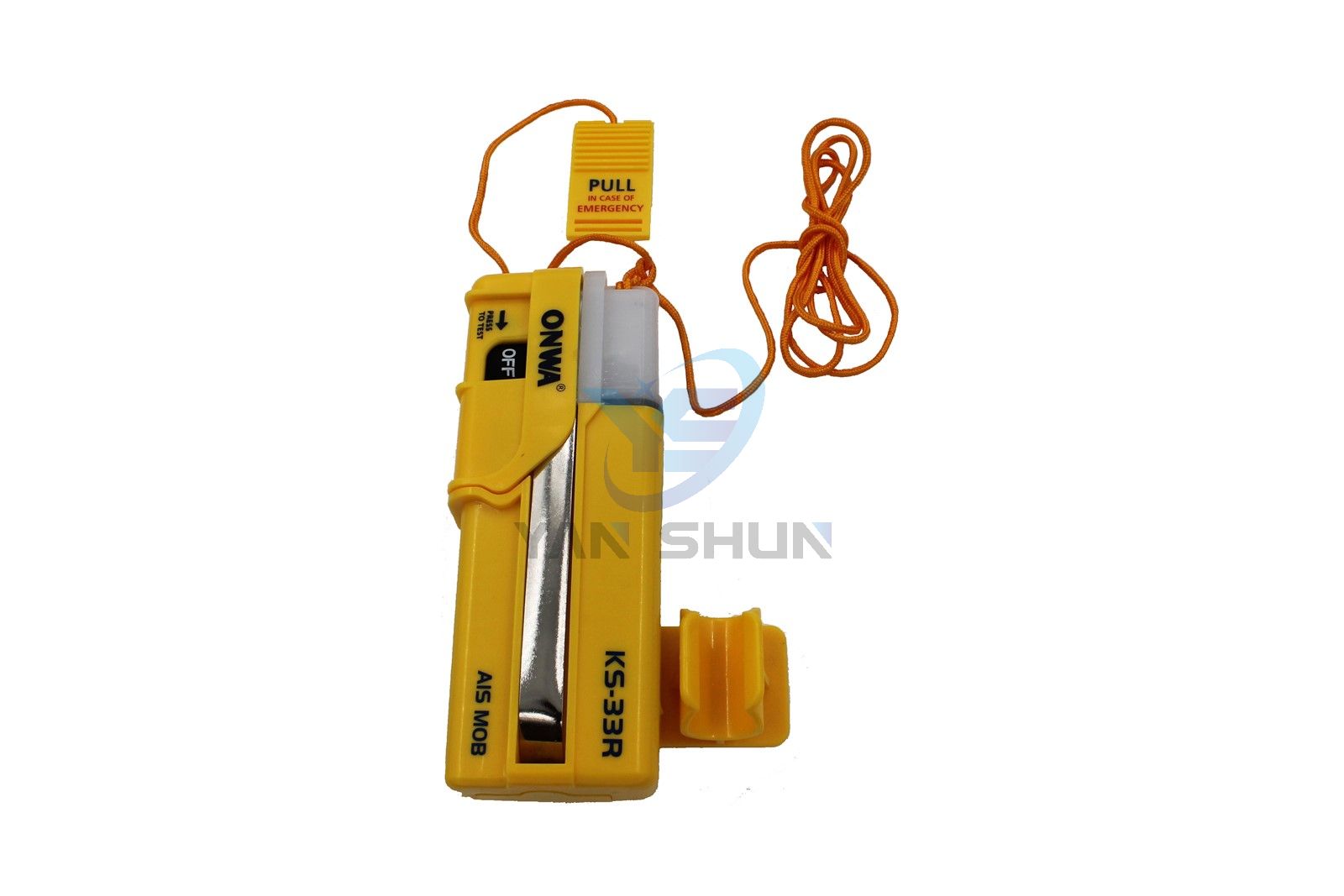

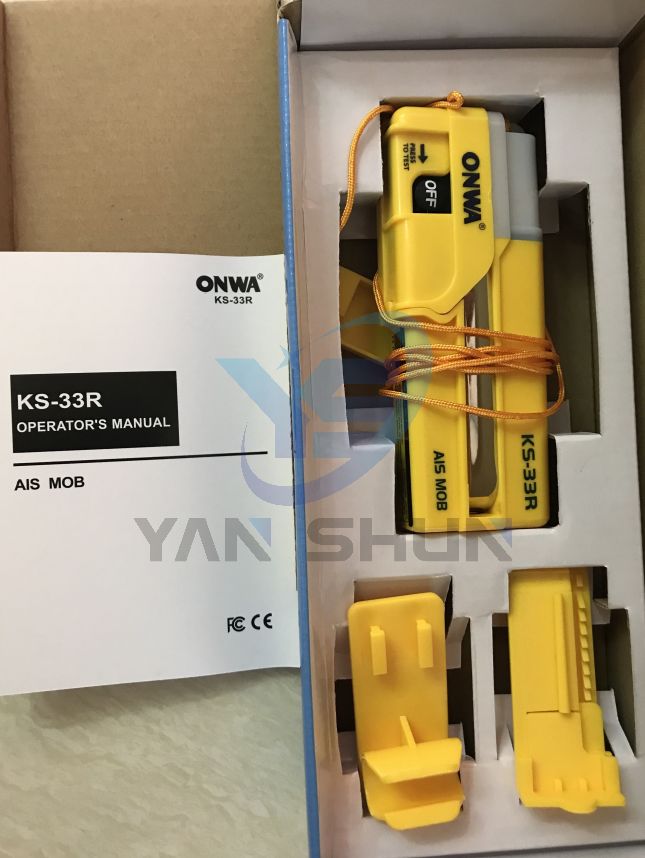

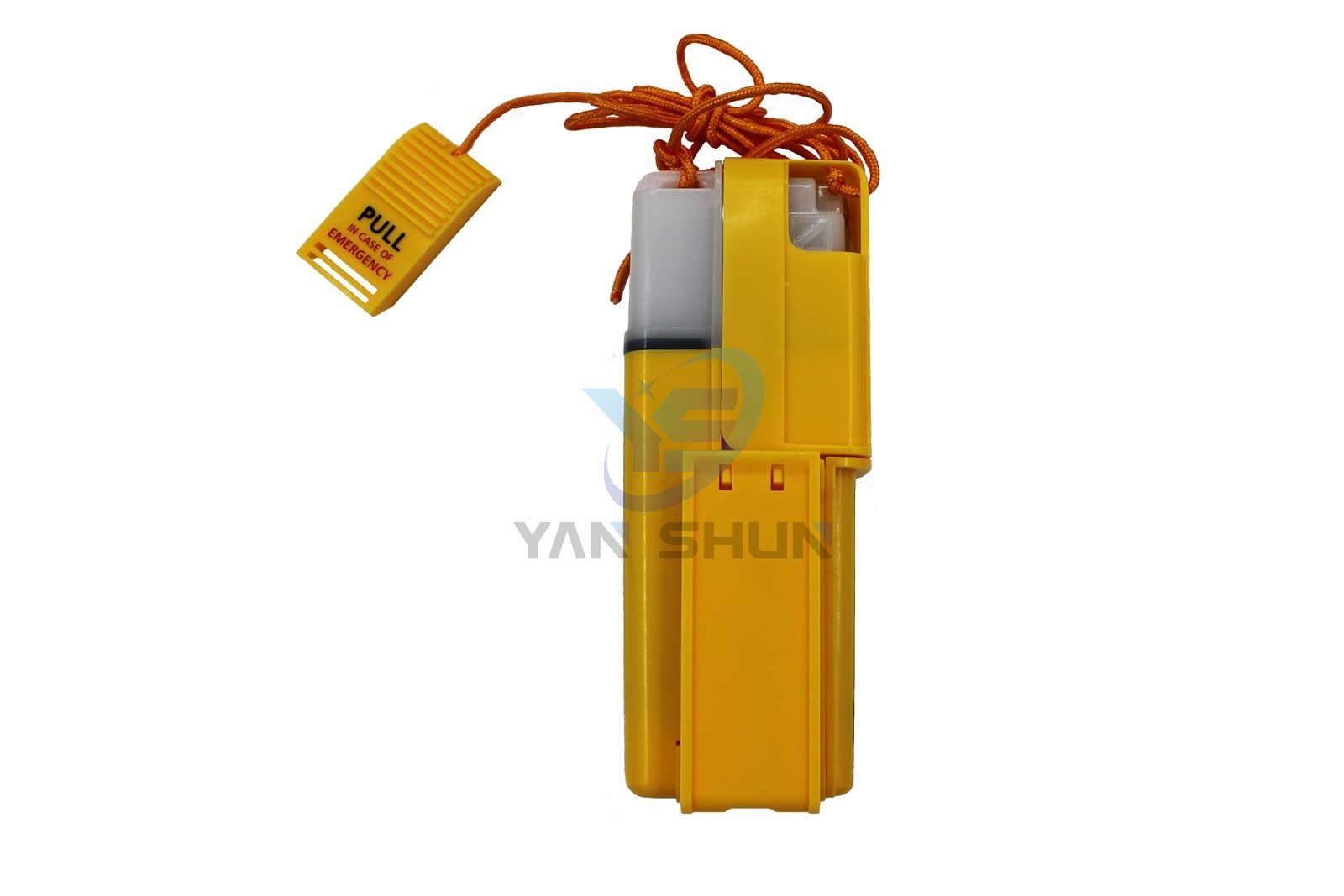

Lifejacket GPS – AIS MOB KS-33R
- Code: YSMLS17
- Instruction
The ONWA KS-33R is a personal AlS device. Lightweight & compact, it is designed to be carried by all crew members & can be mounted on a lifejacket.
When triggered, the KS-33R AIS MOB transmits GPS position information to all AIS-equipped vessels and stations within range to assist in fast recovery in distress situations. Each unit is encoded with a unique serialized ID to ensure all crew is recovered and accounted for. To further assist in recovery, the KS-33R also features an ultra-bright LED beacon and buzzer. The lithium power cell offers a minimum 24hr continuous operation and a 7-year battery storage life.
- Technical Parameter
| Standards: | EC 61097-14, 60945 (environmental/EMC), 61108 part 1, ITU-R M.1371 |
| Waterproof: | IPX7 |
| Operating Temperature: | -20 to +55℃(-4 to +131℉) |
| Storage Temperature: | -30 to +70℃(-22 to +158℉) |
| Battery Type: | Lithium Manganese |
| Transmit Duration: | 24 hours |
| Battery Life (storage): | 7 years |
| Frequency: | 161.975 & 162.025 MHz |
| Power: | 2W nominal |
| AIS Messages Transmitted: | Message 1 (UID, GPS position, SOG, COG, UTC)， Message 14 (MOB ACTIVE or MOB TEST) |
| First Transmission: | After 3 seconds (No GPS) |
| Range: | 4nm typical, with AIS receiver antenna > 5m above sea level |
| Unique ID Number: | Factory Programmed |
| GPS Type: | 50-channel, ceramic patch antenna |
| GPS Position Update: | Every minute |
| Size (D x W x L): | 24 x 50 x 130mm (0.93 x 1.96 x 5.08in) |
| Weight: | 120g (4.23oz) |
